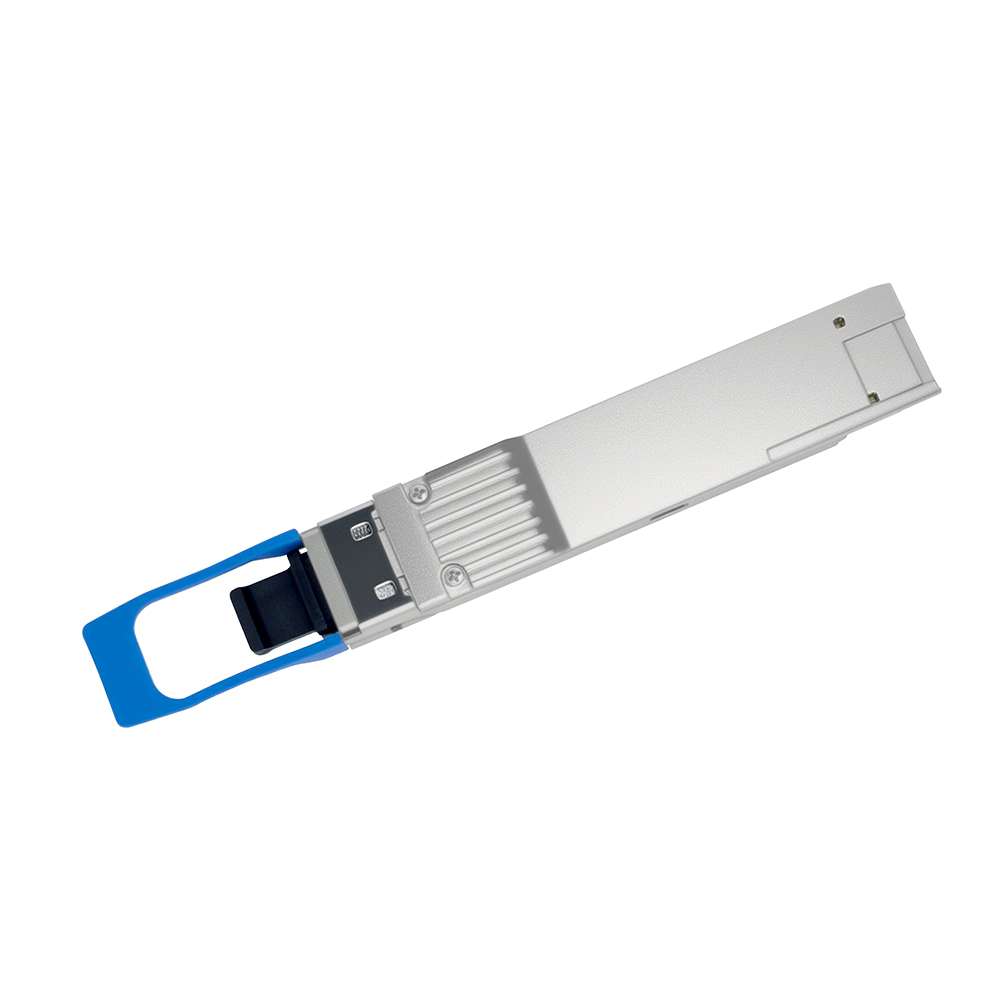

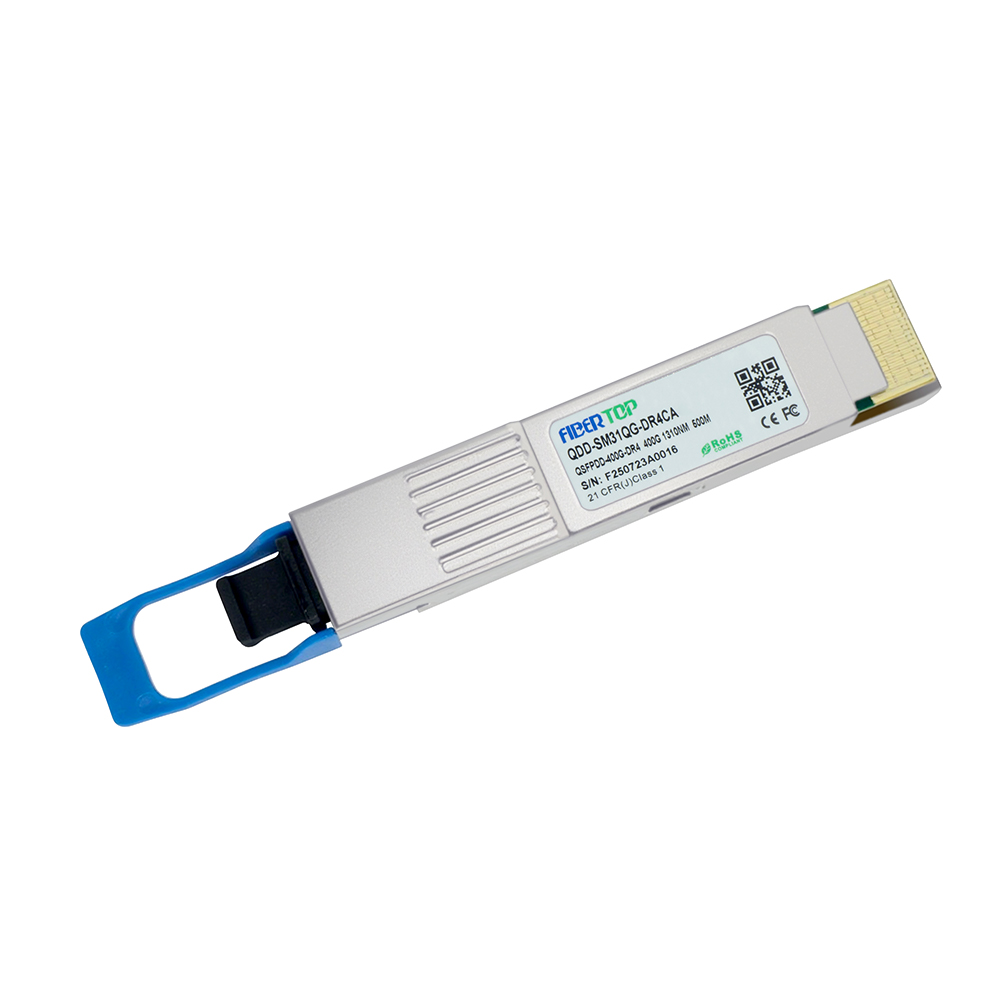

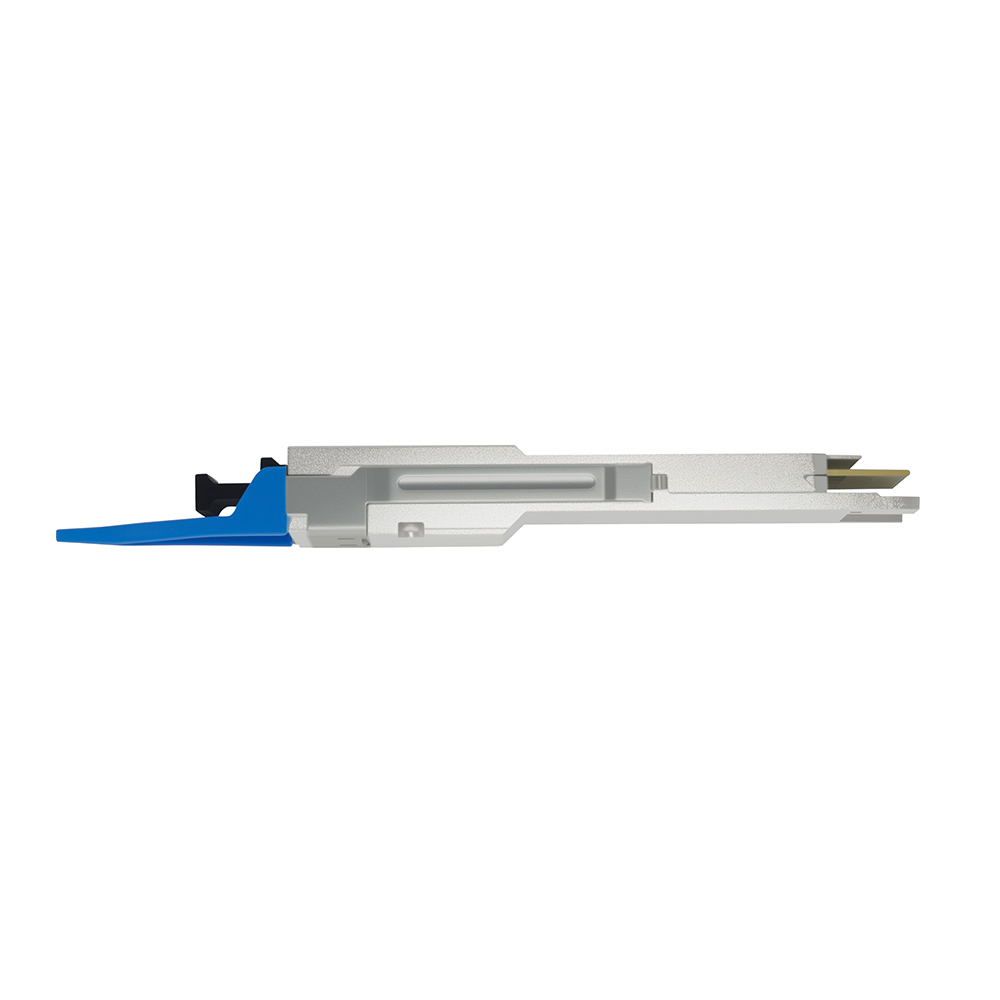

SKU: QDD-SM31QG-DR4CA
Product Highlights
Compliant with IEEE802.3bs 400GBASE-DR4 standard
Compliant with QSFP-DD MSA HW Rev 5.1
Four Parallel 1310nm Optical Lanes
Up to 500m Transmission on Single Mode Fiber (SMF) with FEC
8*53.125Gb/s Electrical interface(400GAUI-8)
Data Rate 4*106.25Gbps (PAM4) Optical interface
Type 2 housing with MPO-12 APC connector
Compliant with QSFP-DD CMIS Rev 5.2
The 400GBASE-DR4 silicon optical module uses MPO-12 connectors and transmits up to 500 m over parallel single-mode fibre. It is compliant with the QSFP-DD MSA, IEEE 802.3bs protocol, and the 400GAUI-8 standard.400Gigabit Ethernet signals are transmitted over four parallel channels, one wavelength per channel. It can be used as a 4x100G branch of QSFP 100G.
| Compatible OEM | FIBERTOP | Compatible With OEM Part Number(s) | QDD-SM31QG-DR4CA |
| Transceiver Type | DR4 | Reach | 500m |
| Wavelength |
1310nm |
Form Type | QSFP-DD |
| Speed Description | 400G | Media | SMF |
| Connector | MPO-12 | Extinction Ratio | > 3.5 dB |
| TX Power | -5.9 ~ 4.0 dBm | Receiver Sensitivity | < -4.4 dBm |
| Applications |
High performance computing interconnect Data center |
Environment |
Operating:0°C to 70°C Storage: -40°C to 85°C |
Quality Certification
FIBERTOP has strict control over all products' quality, including strict qualification audit for material suppliers, comprehensive quality management system and production process control which comply with the certifications and safety standard. Our products accord with industry standard and mainstream quality certification, such as ISO 9001, CE, RoHS, CE, REACH, FCC, FDA, CB, UL etc.
FIBERTOP provides after-sales service in strict accordance with Chinese Consumer Protection Law & Product Quality Law of the People's Republic of China. The defects liability period is provided for each product based on the materials, workmanship, frequency of use and service life. The return, replacement and repair services are as follows:
|
Return within 30 days |
replacement up to 1 year |
Up to 5 years warranty |
Provide relevant information(such as order number, product model, product serial number, product label, etc.)→Describe the problems you meet with→FIBERTOP confirms that the product is complete and still in the warranty period→Send the product back to FIBERTOP repair centre.
Note: The warranty peroid of the repair or replacement product is based on the longer time, either the remaining warranty period of the original product or ninety days after repair.
When your FIBERTOP products need repairing (RMA-Return Material Authorization), please contact your sales consultant to provide timely service for you.
Guarantee repairing in two years:1. Not man made damage; 2. Product quality issues caused by design defects or material problems
• Maintenance center judge as non FIBERTOP products;
• The appearance of man-made damage;
• End face damage caused by use;
• Inapplicable items listed in the warranty statement.
• FIBERTOP guarantees that all products are subject to strict quality control from raw material procurement to production process. According to the problems raised by customers, if it is confirmed that the defective products are caused by raw materials or production process, FIBERTOP will provide repair or replacement services for free;
• The warranty terms do not cover any damage to the product caused by improper installation, accidental disasters, natural disasters, abuse, misuse, inadequate or excessive power supply, incorrect operation, poor environmental conditions, and any unauthorized disassembly, repair or modification;
• The warranty also does not apply to second-hand or unauthorized resale of products;
• The FIBERTOP warranty only guarantees that customers can enjoy repair and replacement services when they purchase defective or damaged products; FIBERTOP is not obligated to compensate or assume responsibility for module damage and repair needs caused by other equipment in use.
• The warranty does not cover problems caused by third-party software or connected related devices, etc.
| FIBERTOP always adheres to the concept of "focus, innovation and progress", and is committed to providing every user with reliable products and enthusiastic services. |
 |
|||||||
| Net Weight |
0.046kg | Gross Weight (with package） | 0.32kg | ||||
 |
| Package of 1~20 pieces |
 |
| Step 1 | Step 2 |
 |
| Step 3 | Step 4 | ||
| Package of 21~80 pieces |
 |
| Step 1 | Step 2 |
 |
| Step 3 | Step 4 | ||
| Package of 81~160 pieces or more |
 |
| Step 1 | Step 2 |
 |
| Step 3 | Step 4 |
DELIVERY METHOD
FIBERTOP has established long-term cooperation with major global logistics companies to provide distribution services to more than 200 countries and regions.
| Receiving Region | Logistics Type | Timeliness |
| Hong Kong, Macao and Taiwan |  |
 |
 |
SF 1~2 days |
| FedEx IP 1~3 days | ||||
| FedEx IE 4~6 days | ||||
| DHL 2~5 days | ||||
| Overseas Regions |  |
 |
 |
UPS 1~3 days |
| FedEx 1~3 days | ||||
| DHL 2~5 days |
Note: 1. Timeliness is the estimated delivery time, some remote areas delivery may be delayed, the specific delivery time shall prevail;
2. If you need to specify a logistics company, please contact customer service staff or your sales representative.
|
FIBERTOP has 20+ years of R&D technology experience and more than 100 successful cases. With rich experience and R&D strength, we have a complete set of services from the core system design to the compatibility design of SFP transceivers and the completion of the final product, we can definitely satisfy our customers' needs through providing customized high-performance products and solutions at the first time. |
Product customization
|
Label |
Colour |
Model |
Length |
Function |
Scheme Customization
|
Business
|
Rate
|
Distance
|
 |
FIBERTOP focuses on customer-oriented solutions and provides technical support.
We can optimize the design based on your original solution, and also provide you with a complete network solution, related products and technical support. |
货号： QDD-MM85QG-SR8C 产品亮点 8个独立并行光通道 每个通道数据速率高达 26.56GBaud，带 CDR 热插拔 OM4 多模上长达 100m 的链路 850nm VCSEL/PD 阵列技术 CML 兼容电气 I/O，QSFP-DD MSA 合规性 通过行业标准 MPO/MTP 端接光纤带实现光纤连接 符合 CMIS 4.0 标准，监控 VCSEL 偏置、发射功率、接收功率、模块温度和模块电源 RoHS II 合规性， 案例操作 温度：商业的： 0 to 70℃ MPO-16 APC 光纤插座类型
SKU: QDD-SM31QG-DR4CA Product Highlights Compliant with IEEE802.3bs 400GBASE-DR4 standard Compliant with QSFP-DD MSA HW Rev 5.1 Four Parallel 1310nm Optical Lanes Up to 500m Transmission on Single Mode Fiber (SMF) with FEC 8*53.125Gb/s Electrical interface(400GAUI-8) Data Rate 4*106.25Gbps (PAM4) Optical interface Type 2 housing with MPO-12 APC connector Compliant with QSFP-DD CMIS Rev 5.2
SKU： QFP-LW31QG-ER8C 产品亮点 符合 QSFP-DD MSA 标准 符合 IEEE 802.3bs 400GBASE-ER8 数字诊断监控支持 热插拔76针电气接口 8 LAN-WDM 通道 MUX/DEMUX 设计 53.125 Gbps PAM4 通道电气串行接口 (400GAUI-8) 最大功耗 15.4W LC双工连接器 支持 425 Gbps 比特率 单模光纤传输距离可达 40 公里 单3.3V电源 符合 RoHS 2 标准
SKU: QFP-CTQG-ZRC Product Highlights Support Flex-grid channel spacing DWDM in C-band Support Client-side Interfaces: 400GAUI-8 Support Line-side DP-16QAM with CFEC Standard QSFP-DD type 2 form factor 76pin QSFP-DD MSA compliant connector Compliant to CMIS 5.0 Compliant to OIF Implementation Agreement for Coherent CMIS, Rev 01.1
SKU： QFP-CTQG-ZRC 产品亮点 支持 C 频段 Flex-grid 信道间隔 DWDM 支持客户端接口：400GAUI-8 支持带有 CFEC 的线路侧 DP-16QAM 标准 QSFP-DD 类型 2 外形尺寸 76 针 QSFP-DD MSA 兼容连接器 符合CMIS 5.0 符合 OIF Coherent CMIS 实施协议，修订版 01.1
货号： QFP-DCQG-ZRC 产品亮点 运行速率高达 478.75 Gbps PM-QPSK (200G) 和 PM-16QAM (200G / 400G) 调制格式 400GE、200GE 和 OTU4/OTUCn 服务 热插拔 QSFP-DD 外形尺寸 8×CEI-56G-VSR电接口 锁定寄存器 最大功耗：24W

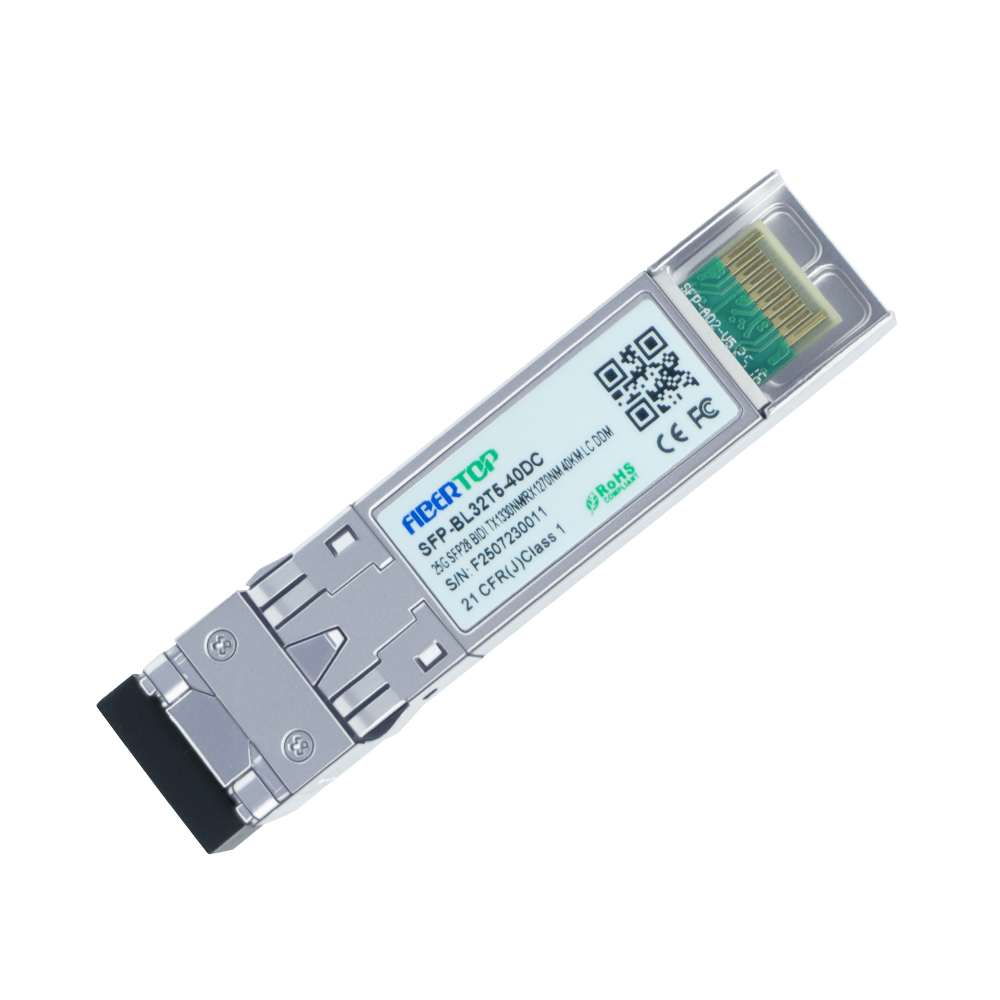

SKU: SFP-BL32T5-40DC Product Highlights All metal housing for superior EMI performance Up to 25.78Gbps Data Links Up to 40km transmission on SMF 1270nm/1330nm DFB Laser and APD receiver Metal enclosure, for lower EMI 2-wire interface with integrated Digital Diagnostic monitoring Hot-pluggable SFP28 footprint Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle
