SKU: QFP-BP95HG-30DC-FSZ
Product Highlights
Supports 100GBASE-ER1 BIDI
Lane signaling rate 106.25Gb/s with PAM4
Up to 30km transmission on SMF, EML Laser and APD receiver
4x25.78Gb/s with NRZ electrical interface (CAUI-4), QSFP28 MSA package with simplex LC connector
Support KP4 FEC inside the module , I2C interface with integrated Digital Diagnostic monitoring
Single +3.3V power supply, Power consumption <4W
Compliant to 802.3cu, SFF-8636&SFF-8679 standard ,Compliant to 100G Lambda MSA 100G-ER1 Optical Specifications
Complies with EU Directive 2015/863/EU, Operating case temperature: 0 to +70 °C

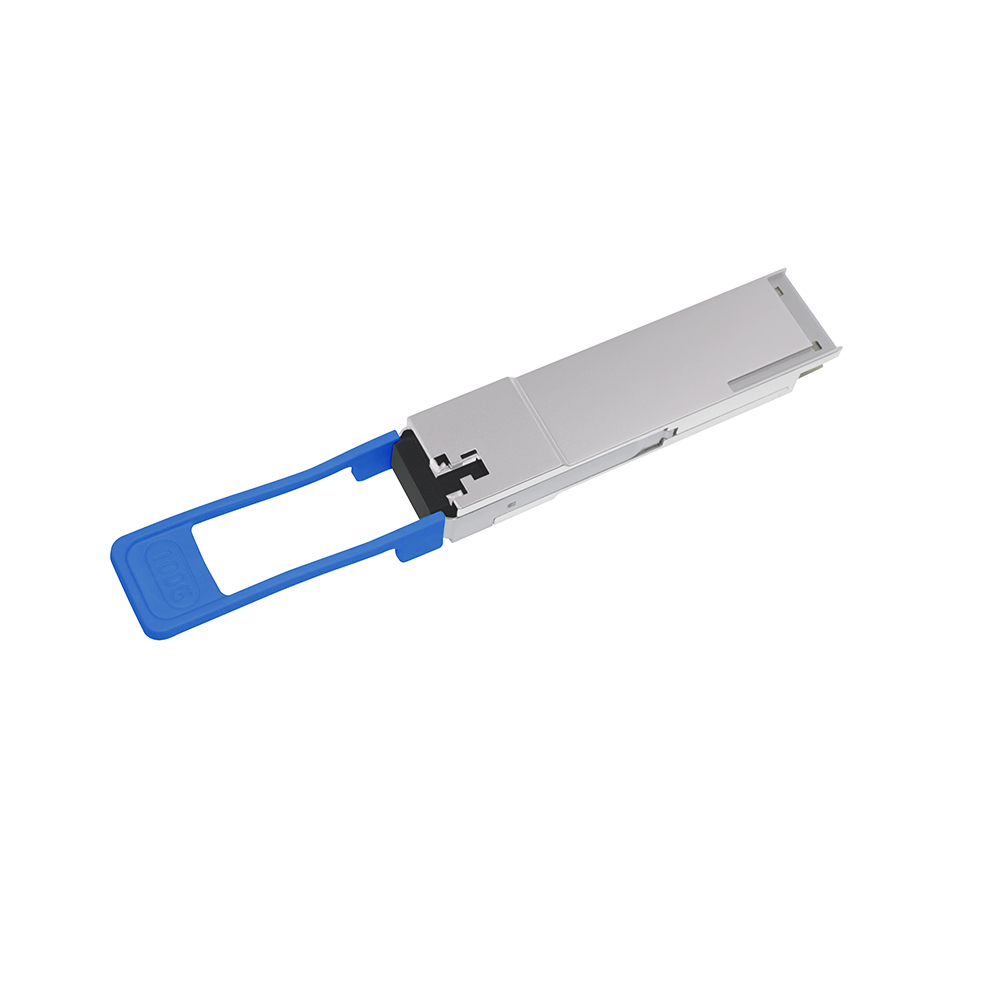

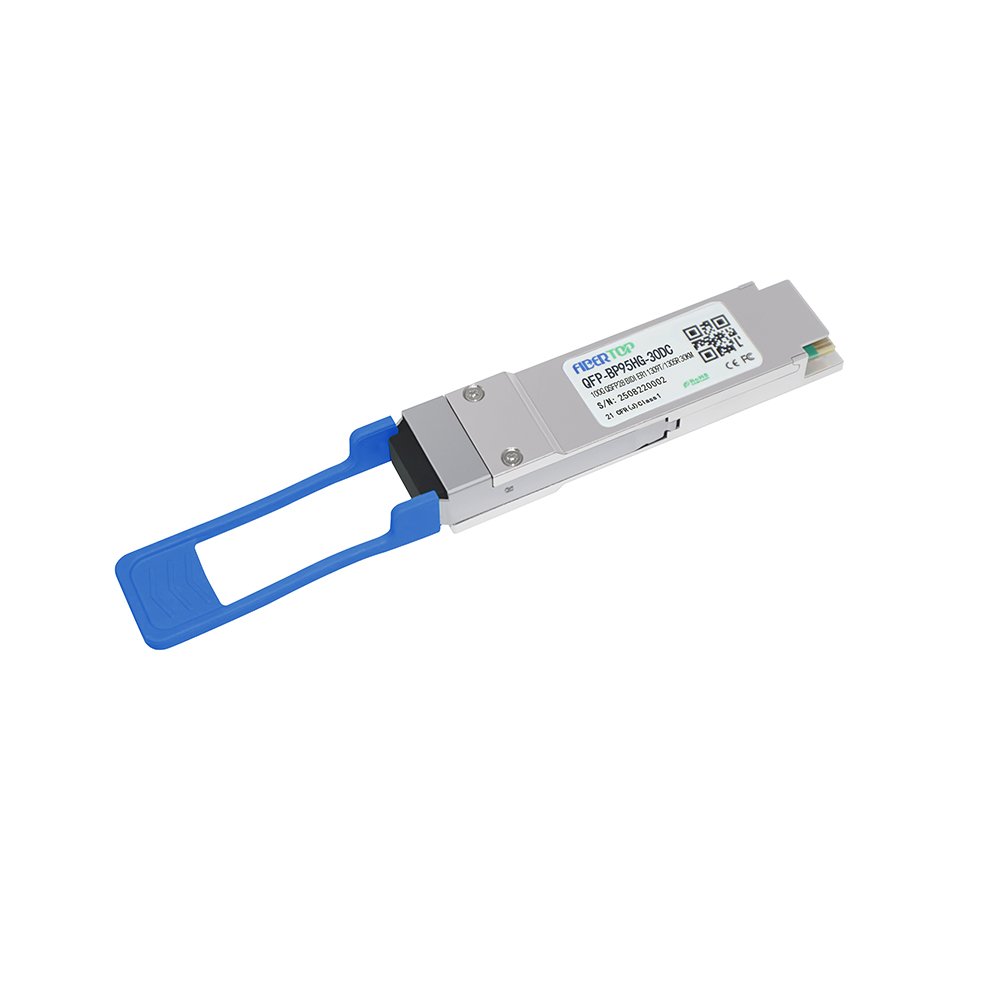

FIBERTOP 100G QSFP28 ER1 BIDI TX1309NM/RX1305NM 30km LC DOM Optical Transceiver Module
The 100G QSFP28 ER1 BIDI is designed for 30km optical communication applications.
It is intended for the service with single mode fiber in 100Gb/s high speed data communications.
The optical signals are multiplexed to a single-mode fiber through commercial standard LC connector.
| Vendor Name | FIBERTOP | FIBERTOP Part Number(s) | QFP-BP95HG-30DC |
| Transceiver Type | ER1 | Reach | 30km |
| Wavelength |
TX1309nm/RX1305nm |
Form Type | QSFP28 |
| Speed Description | 100Gb/s | Media | SMF |
| Connector | LC | Extinction Ratio | >5.0 dBm |
| TX Power | 0~5.6 dBm | Receiver Sensitivity | <-12.5 dBm |
| Applications |
Data Center 100 Gigabit Ethernet |
Environment |
Operating:0°C to 75°C Storage: -40°C to 85°C |
Quality Certification
FIBERTOP has strict control over all products' quality, including strict qualification audit for material suppliers, comprehensive quality management system and production process control which comply with the certifications and safety standard. Our products accord with industry standard and mainstream quality certification, such as ISO 9001, CE, RoHS, CE, REACH, FCC, FDA, CB, UL etc.
