SKU: QFP-BP59HG-30DC-FSZ
Product Highlights
Supports 100GBASE-ER1 BIDI
Lane signaling rate 106.25Gb/s with PAM4
Up to 30km transmission on SMF, EML Laser and APD receiver
4x25.78Gb/s with NRZ electrical interface (CAUI-4), QSFP28 MSA package with simplex LC connector
Support KP4 FEC inside the module , I2C interface with integrated Digital Diagnostic monitoring
Single +3.3V power supply, Power consumption <4W
Compliant to 802.3cu, SFF-8636&SFF-8679 standard ,Compliant to 100G Lambda MSA 100G-ER1 Optical Specifications
Complies with EU Directive 2015/863/EU, Operating case temperature: 0 to +70 °C

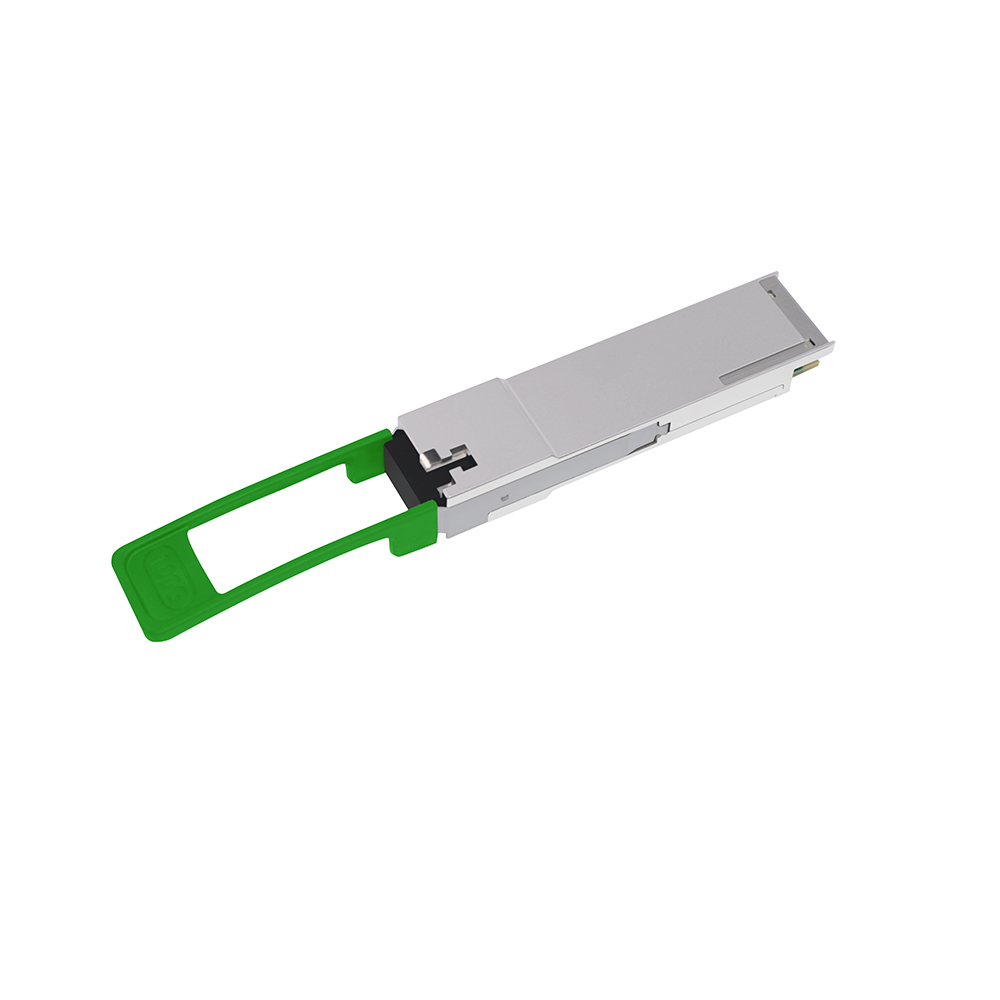

FIBERTOP 100G QSFP28 ER1 BIDI TX1305NM/RX1309NM 30km LC DOM Optical Transceiver Module
The 100G QSFP28 ER1 BIDI is designed for 30km optical communication applications.
It is intended for the service with single mode fiber in 100Gb/s high speed data communications.
The optical signals are multiplexed to a single-mode fiber through commercial standard LC connector.
| Vendor Name | FIBERTOP | FIBERTOP Part Number(s) | QFP-BP59HG-30DC |
| Transceiver Type | ER1 | Reach | 30km |
| Wavelength |
TX1305nm/RX1309nm |
Form Type | QSFP28 |
| Speed Description | 100Gb/s | Media | SMF |
| Connector | LC | Extinction Ratio | >5.0 dBm |
| TX Power | 0~5.6 dBm | Receiver Sensitivity | <-12.5 dBm |
| Applications |
Data Center 100 Gigabit Ethernet |
Environment |
Operating:0°C to 75°C Storage: -40°C to 85°C |
Quality Certification
FIBERTOP has strict control over all products' quality, including strict qualification audit for material suppliers, comprehensive quality management system and production process control which comply with the certifications and safety standard. Our products accord with industry standard and mainstream quality certification, such as ISO 9001, CE, RoHS, CE, REACH, FCC, FDA, CB, UL etc.
FIBERTOP严格按照 中国消费者保护法和中华人民共和国产品质量法。每个产品根据其材料、工艺、使用频率和使用寿命规定了缺陷责任期。退货、换货、维修服务如下：
|
30天内退货 |
更换长达 1 年 |
长达 5 年保修 |
提供相关信息（如订单号、产品型号、产品序列号、产品标签等）→描述您遇到的问题→FIBERTOPSFP确认产品完整且仍在保修期内→将产品寄回FIBERTOP SFP 维修中心。
笔记： 维修或更换产品的保修期以原产品剩余保修期或维修后九十天中较长者为准。
当您的 FIBERTOP 产品需要维修（RMA-Return Material Authorization）时，请联系您的销售顾问，以便为您提供及时的服务。
保修两年包修： 1．非人为损坏； 2、因设计缺陷或材料问题引起的产品质量问题
• 维修中心判定为非FIBERTOP产品；
• 出现人为损坏；
• 使用造成的端面损坏；
• 保修声明中列出的不适用项目。
• FIBERTOP保证所有产品从原材料采购到生产过程都经过严格的质量控制。根据客户提出的问题，如果确认缺陷产品是由原材料或生产工艺造成的，FIBERTOP将免费提供维修或更换服务；
• 保修条款不涵盖因安装不当、意外灾害、自然灾害、滥用、误用、供电不足或过多、不正确操作、恶劣环境条件以及任何未经授权的拆卸、修理或改装而造成的产品损坏；
• 保修也不适用于二手或未经授权转售的产品；
• FIBERTOP保修仅保证客户在购买有缺陷或损坏的产品时可以享受维修和更换服务；对于使用中的其他设备造成的模块损坏和维修需求，FIBERTOP 没有义务进行赔偿或承担责任。
• 保修范围不包括第三方软件或连接的相关设备等引起的问题。
| FIBERTOP始终秉承“专注、创新、进取”的理念，致力于为每一位用户提供可靠的产品和热情的服务。 |
 |
|||||||
| 净重 |
/ | 总重量 （带包装） | 0.32公斤 |
||||
 |
| 1~20 件装 |
 |
| 步骤1 | 第2步 |
 |
| 步骤3 | 步骤4 | ||
| 21~80件装 |
 |
| 步骤1 | 第2步 |
 |
| 步骤3 | 步骤4 | ||
| 81~160件以上包装 |
 |
| 步骤1 | 第2步 |
 |
| 步骤3 | 步骤4 |
运输方式
FIBERTOP与全球主要物流公司建立了长期合作，为200多个国家和地区提供配送服务。
| 接收地区 | 物流类型 | 时效性 |
| 港澳台地区 |  |
 |
 |
顺丰1~2天 |
| FedEx IP 1~3 天 | ||||
| 联邦快递 IE 4~6 天 | ||||
| DHL 2~5天 | ||||
| 海外地区 |  |
 |
 |
UPS 1~3天 |
| 联邦快递1~3天 | ||||
| DHL 2~5天 |
笔记： 1.时效为预计配送时间，部分偏远地区配送可能会延迟，具体配送时间为准；
2、如需指定物流公司，请联系客服人员或您的销售代表。
|
FIBERTOP拥有10多年的研发技术经验和100多个成功案例。凭借丰富的经验和研发实力，我们拥有从核心系统设计到SFP光模块的兼容性设计以及最终产品的完成的一整套服务，我们绝对可以通过提供定制的高性能产品和服务来满足客户的需求。第一时间解决。 |
产品定制
|
标签 |
颜色 |
模型 |
长度 |
功能 |
方案定制
|
商业
|
速度
|
距离
|
 |
FIBERTOP专注于以客户为导向的解决方案并提供技术支持。
我们可以在您原有的解决方案的基础上进行优化设计，同时还为您提供完整的网络解决方案、相关产品和技术支持。 |
| QFP-BP23HG-10DC | 100G LR1 双向 QSFP28 光模块 SMF 1271nm/1311nm 10km LC DOM 0-70℃ |
| QFP-BP32HG-10DC |
100G LR1 双向 QSFP28 光模块 SMF 1311nm/1271nm 10km LC DOM 0-70℃ |
| QFP-BP23HG-20DC | 100G LR1 双向 QSFP28 光模块 SMF 1291nm/1311nm 20km LC DOM 0-70℃ |
| QFP-BP32HG-20DC | 100G LR1 双向 QSFP28 光模块 SMF 1311nm/1291nm 20km LC DOM 0-70℃ |
| QFP-BP59HG-30DC |
100G ER1 双向 QSFP28 光模块 SMF 1305nm/1309nm 30km LC DOM 0-70℃ |
| QFP-BP95HG-30DC | 100G ER1 双向 QSFP28 光模块 SMF 1309nm/1305nm 30km LC DOM 0-70℃ |
| QFP-LW31HG-80DC |
100G ZR4 QSFP28光模块 SMF 1310nm 80km LC DOM 0-70℃ |
SKU: QFP-BM85HG-S1DC Product Highlights 2x53.125Gbps(26.5625GBd) PAM4 parallel optics architecture 4x25.78125Gbps NRZ retimed electrical I/O QSFP28 module form factor Bandwidth density of 100Gbps bi-directional 2 channels 850nm/910nm VCSEL and PIN photo detector Internal 4:2 Gearbox with KP4 FEC circuits on both receiver and transmitter channels Maximum link length of 100m OM4,70m OM3
货号： QFP-BP23HG-10DC 产品亮点 PAM4 通道信号传输速率 106.25Gb/s SMF 传输距离可达 10 公里 EML 激光和 PIN 接收器 4x25.78Gb/s，带 NRZ 电气接口 (CAUI-4) 模块内部支持KP4 FEC 高速I/O电气接口 具有集成数字诊断监控功能的 I2C 接口
货号： QFP-BP32HG-10DC 产品亮点 PAM4 通道信号传输速率 106.25Gb/s SMF 传输距离可达 10 公里 EML 激光和 PIN 接收器 4x25.78Gb/s，带 NRZ 电气接口 (CAUI-4) 模块内部支持KP4 FEC 高速I/O电气接口 具有集成数字诊断监控功能的 I2C 接口
SKU: QFP-BP23HG-20DC Product Highlights 4x25.78Gb/s with NRZ electrical interface (CAUI-4) Lane signaling rate 106.25Gb/s with PAM4 Up to 20km transmission on SMF EML Laser and PIN receiver QSFP28 MSA package with simplex LC connector I2C interface with integrated Digital Diagnostic monitoring Single +3.3V power supply
SKU: QFP-BP32HG-20DC Product Highlights 4x25.78Gb/s with NRZ electrical interface (CAUI-4) Lane signaling rate 106.25Gb/s with PAM4 Up to 20km transmission on SMF EML Laser and PIN receiver QSFP28 MSA package with simplex LC connector I2C interface with integrated Digital Diagnostic monitoring Single +3.3V power supply
SKU: QFP-BP95HG-30DC-FSZ Product Highlights Supports 100GBASE-ER1 BIDI Lane signaling rate 106.25Gb/s with PAM4 Up to 30km transmission on SMF, EML Laser and APD receiver 4x25.78Gb/s with NRZ electrical interface (CAUI-4), QSFP28 MSA package with simplex LC connector Support KP4 FEC inside the module , I2C interface with integrated Digital Diagnostic monitoring Single +3.3V power supply, Power consumption <4W Compliant to 802.3cu, SFF-8636&SFF-8679 standard ,Compliant to 100G Lambda MSA 100G-ER1 Optical Specifications Complies with EU Directive 2015/863/EU, Operating case temperature: 0 to +70 °C
SKU: QFP-BP59HG-30DC-FSZ Product Highlights Supports 100GBASE-ER1 BIDI Lane signaling rate 106.25Gb/s with PAM4 Up to 30km transmission on SMF, EML Laser and APD receiver 4x25.78Gb/s with NRZ electrical interface (CAUI-4), QSFP28 MSA package with simplex LC connector Support KP4 FEC inside the module , I2C interface with integrated Digital Diagnostic monitoring Single +3.3V power supply, Power consumption <4W Compliant to 802.3cu, SFF-8636&SFF-8679 standard ,Compliant to 100G Lambda MSA 100G-ER1 Optical Specifications Complies with EU Directive 2015/863/EU, Operating case temperature: 0 to +70 °C
SKU: QFP-BL23HG-80DC Product Highlights Supports 103.125Gb/s aggregate bit rate Built-in 4-channel Clock and Data Recovery (CDR) in TX and RX LAN WDM EML laser and PIN receiver with SOA Up to 80km reach for G.652 SMF Hot pluggable 38 pin electrical interface Single +3.3V power supply Maximum power consumption 5.5W
SKU: QFP-BL32HG-80DC Product Highlights Supports 103.125Gb/s aggregate bit rate Built-in 4-channel Clock and Data Recovery (CDR) in TX and RX LAN WDM EML laser and PIN receiver with SOA Up to 80km reach for G.652 SMF Hot pluggable 38 pin electrical interface Single +3.3V power supply Maximum power consumption 5.5W
