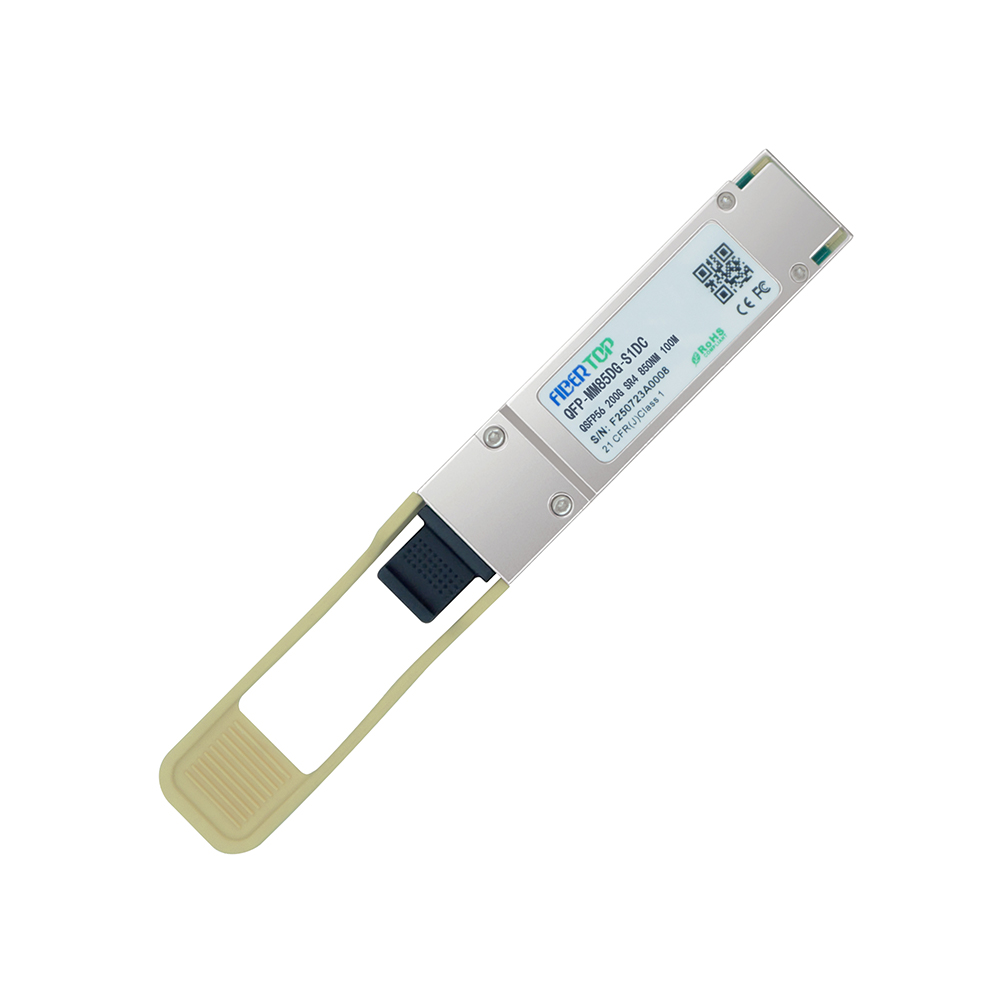

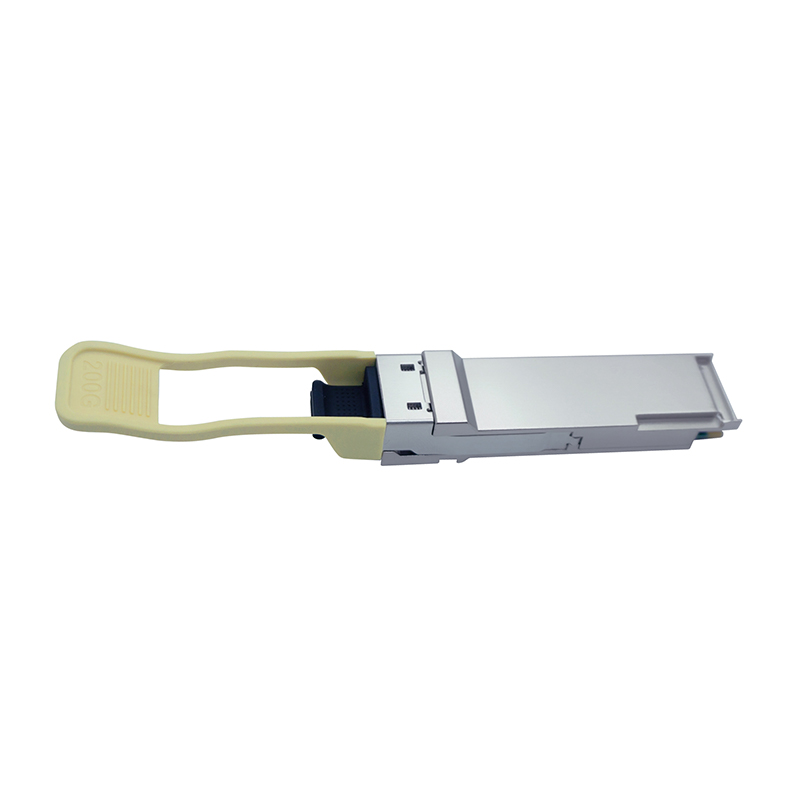

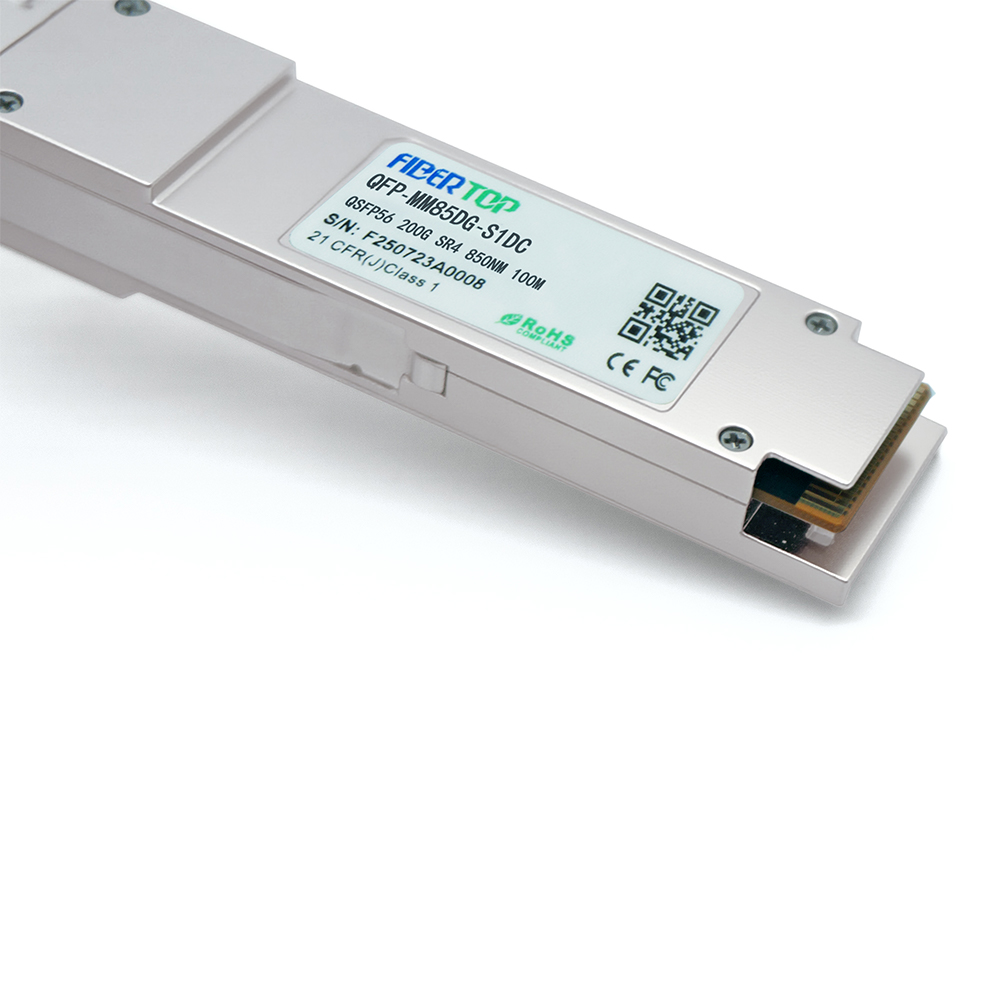

SKU: QFP-MM85DG-S1DC
Product Highlights
Hot Pluggable QSFP56 Transceiver
Supports 212,5Gbps aggregate bit rate
Up to 53.125Gbps data rate per channel
SFF-8665 compliant QSFP56 port;SFF-8636 compliant I2C management
Compliant with IEEE802.3cd 200GBASE-SR4
MPO-12 connector receptacle with UPC end-face
Maximum link length of 100m on OM4 MMF
This Mellanox® QSFP56 200G transceiver provides 200GBASE-SR4 throughput up to 100m over multi-mode fiber (MMF) using a wavelength of 850nm via an MPO connector. It can operate at temperatures between 0 and 70C. Our transceiver is built to meet or exceed OEM specifications and is guaranteed to be 100% compatible with Mellanox®. It has been programmed, uniquely serialized, and tested for data-traffic and application to ensure that it will initialize and perform identically. All of our transceivers comply with Multi-Source Agreement (MSA) standards to provide seamless network integration. Additional product features include Digital Optical Monitoring (DOM) support which allows access to real-time operating parameters.
| Compatible OEM Part Number | Mellanox | FIBERTOP Part Number(s) | QFP-MM85DG-S1DC |
| Transceiver Type | SR4 | Reach | 100m |
| Wavelength |
850nm |
Form Type | QSFP56 |
| Speed Description | 200G | Media | SMF |
| Connector | MPO-12 | Extinction Ratio | > 3.0 dB |
| TX Power | -6.5 ~ +4 dBm | Receiver Sensitivity | < -6.5 dBm |
| Applications |
200GBASE-SR4 Ethernet 200G InfiniBand HDR systems Proprietary Protocol Applications |
Environment |
Operating:0°C to 70°C Storage: -40°C to 80°C |
| • Mellanox network switches | • Mellanox network routers |
| • Mellanox firewalls | • Mellanox security gateway |
| • Mellanox fiber media converter | • Mellanox network adapters |
| • Mellanox network interface card (NICs) | • Mellanox NAS |
Quality Certification
FIBERTOP has strict control over all products' quality, including our strict qualification audit for material suppliers, comprehensive quality management system and production process control which comply with the certifications and safety standard. Our products accord with industry standard and mainstream quality certification, such as ISO 9001, CE, RoHS, CE, REACH, FCC, FDA, CB, UL etc.
FIBERTOP严格按照 中国消费者保护法 & 中华人民共和国产品质量法。每个产品根据其材料、工艺、使用频率和使用寿命规定了缺陷责任期。退货、换货、维修服务如下：
|
30天内退货 |
更换期限长达 1 年 |
长达 5 年保修 |
提供相关信息（如订单号、产品型号、产品序列号、产品标签等）→描述您遇到的问题→FIBERTOP 确认产品完整且仍在保修期内→将产品寄回FIBERTOP 维修中心。
笔记：维修或更换产品的保修期以原产品剩余保修期或维修后九十天中较长者为准。
当您的 FIBERTOP 产品需要维修（RMA-Return Material Authorization）时，请联系您的销售顾问，以便为您提供及时的服务。
保修两年包修： 1.非人为损坏； 2、因设计缺陷或材料问题引起的产品质量问题。
• 维修中心判断为非FIBERTOP产品；
• 出现人为损坏；
• 使用造成的端面损坏；
• 保修声明中列出的不适用项目。
• FIBERTOP保证所有产品从原材料采购到生产过程都经过严格的质量控制。根据客户提出的问题。如果确认缺陷产品是由原材料或生产工艺造成的，FIBERTOP将免费提供维修或更换服务；
• 保修条款不涵盖因安装不当、意外灾害、自然灾害、滥用、误用、供电不足或过多、不正确操作、恶劣环境条件以及任何未经授权的拆卸、修理或改装而造成的产品损坏；
• 保修也不适用于二手或未经授权转售的产品；
• FIBERTOP保修仅保证客户在购买有缺陷或损坏的产品时可以享受维修和更换服务；对于使用中的其他设备造成的模块损坏和维修需求，FIBERTOP 没有义务进行赔偿或承担责任。
• 保修范围不包括第三方软件或连接的相关设备等引起的问题。
| FIBERTOP始终秉承“专注、创新、进取”的理念，致力于为每一位用户提供可靠的产品和热情的服务。 |
 |
|||||||
| 净重 |
0.017公斤 | 总重量（带包装） | 0.32公斤 |
||||
 |
| 1~50 件装 |
 |
| 步骤1 | 第2步 |
 |
| 步骤3 | 步骤4 | ||
| 51~200件装 |
 |
| 步骤1 | 第2步 |
 |
| 步骤3 | 步骤4 | ||
| 201~400件以上包装 |
 |
| 步骤1 | 第2步 |
 |
| 步骤3 | 步骤4 |
运输方式
FIBERTOP与全球主要物流公司建立了长期合作，为200多个国家和地区提供配送服务。
| 接收地区 | 物流类型 | 时效性 |
| 港澳台地区 |  |
 |
 |
顺丰1~2天 |
| FedEx IP 1~3 天 | ||||
| 联邦快递 IE 4~6 天 | ||||
| DHL 2~5天 | ||||
| 海外地区 |  |
 |
 |
UPS 1~3天 |
| 联邦快递1~3天 | ||||
| DHL 2~5天 |
笔记： 1.时效为预计发货时间，部分偏远地区发货可能会延迟，具体发货时间为准。
2、如需指定物流公司，请联系客服人员或您的销售代表。
|
FIBERTOP拥有 20+年的研发技术经验和100多个成功案例。凭借丰富的经验和研发实力，我们拥有从核心系统设计到SFP光模块的兼容性设计以及最终产品的完成的一整套服务。我们绝对可以通过第一时间提供定制的高性能产品和解决方案来满足客户的需求。 |
产品定制
|
标签 |
颜色 |
模型 |
长度 |
功能 |
方案定制
|
商业
|
速度
|
距离
|
 |
FIBERTOP专注于以客户为导向的解决方案并提供技术支持。
我们可以在您原有的解决方案的基础上进行优化设计，并为您提供完整的网络解决方案、相关产品和技术支持。 |
| SFP-MM85TG-S3DC-FSZ | 10G BASE-SR SFP+ 850nm 300m 收发器 Lc DOM |
| SFP-10G-LRM-FSZ | 10G LRM SFP+ MMF 1310nm 220m LC DOM 收发器模块 LC DOM |
| SFP-10G-LR-FSZ | 10G LR SFP+ SMF 1310nm 10km LC DOM 收发器模块 LC DOM |
| CWDM-10G-1270-40-FSZ | 10GBase-CWDM SFP+ 收发器 SMF 1270nm 40km LC DOM |
| ONS-SC+-10G-35.0-FSZ | 10G DWDM SFP+ 收发器 C 频段 CH53 100GHz 1535.04nm 80km LC DDM |
| SFP-10G-ZR100-FSZ | 10GBase-ZR SFP+ 收发器 SMF 1550nm 100km LC DOM |
| QFP-DC14FG-1M5C |
40G QSFP+ 至 4xSFP+ 分线双轴铜质无源 1m- 5m DAC 电缆 |
| SFP-DC11T5-xxMC |
25G SFP28 直连无源铜缆 1M-5M DAC |
Q：该模块与那些交换机兼容?
A：兼容华为思科 梅拉诺克斯
