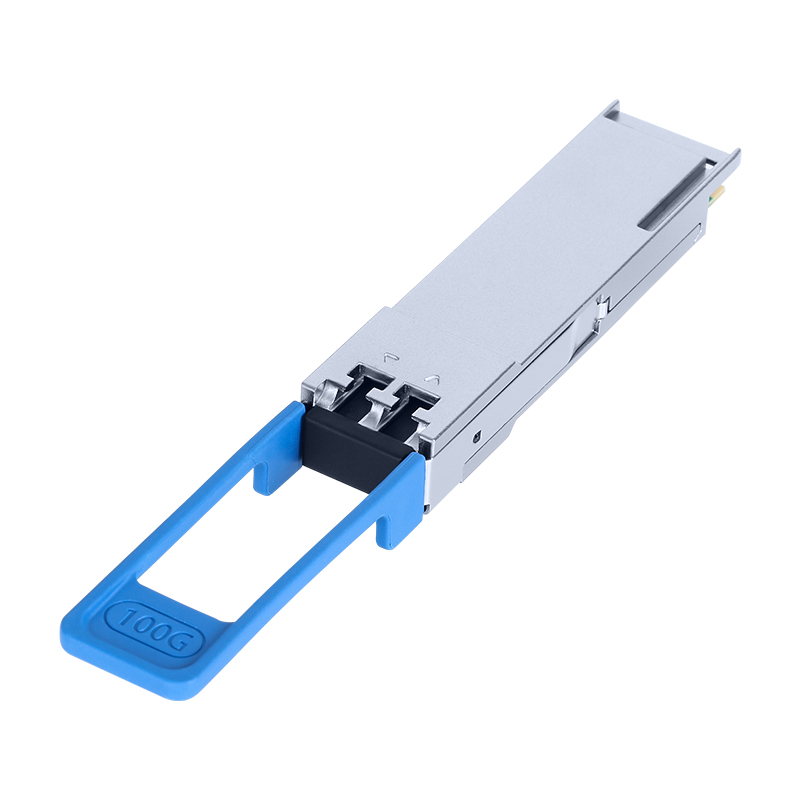

Dell® 407-BBVO Compatible 100GBase-CWDM4 QSFP28 SMF 2km Transceiver
Dell® 407-BBVO Compatible  100GBase-CWDM4 QSFP28 SMF 2km Transceiver

Dell® 407-BBVO Compatible 100GBase-CWDM4 QSFP28 SMF 2km Transceiver



货号: 407-BBVO-FSZ



产品亮点



热插拔 QSFP28 外形尺寸



支持25G/28G双速率运行



单模光纤 (SMF) 上的最大链路长度为 2 公里



功耗 < 3.5W



内置数字诊断功能



支持 40G/100G 双模式操作,具有 CDR 自动旁路模式



4x25.78Gb/s 基于 DFB 的 CWDM 发射机


新产品



Dell® 407-BBVO Compatible QSFP28 transceiver provides 100GBase-CWDM4 throughput up to 2km over single-mode fiber (SMF) using wavelengths between 1270nm to 1330nm via an LC connector. It is guaranteed to be 100% compatible with the equivalent Juniper® transceiver. This easy to install, hot swappable transceiver has been programmed, uniquely serialized and data-traffic and application tested to ensure that it will initialize and perform identically. Digital optical monitoring (DOM) support is also present to allow access to real-time operating parameters.





Technical Specification

Compatible OEM Dell®  Compatible With OEM Part Number(s) 407-BBVO
Transceiver Type CWDM4 Reach 2km
Wavelength 1270nm to 1330nm Form Type QSFP28
Speed Description 100G Media SMF
Connector LC Duplex  Extinction Ratio >3.5 dB
TX Power -6.5~+2.5 dBm Receiver Sensitivity <-10dBm
 Applications

100G CWDM4 applications with FEC

Environment

Operating: 0 to70°C

Storage: -40°C to 85°C





Compatibility

• Dell network switches Dell network routers
• Dell firewalls • Dell security gateway
• Dell fiber media converter • Dell network adapters
• Dell network interface card (NICs) • Dell NAS






Quality Assurance





Quality Certification

FIBERTOP has strict control over all products' quality our products, including our strict qualification audit for material suppliers, comprehensive quality management system and production process control which comply with the certifications and safety standard. Our products accord with industry standard and mainstream quality certification, such as  ISO 9001, CE, RoHS, CE, REACH, FCC, FDA, CB, UL etc.



  • Excellent quality is the foundation of FIBERTOPSFP' s survival and development.
  • Our R&D team are experts with rich experience in telecom industry.
  • Our material suppliers are first-class manufacturers in the industry.
  • We have the qualification of OEM for first-class system equipment manufacturers.











FIBERTOP严格按照售后服务提供 中国消费者保护法 & 中华人民共和国产品质量法。每个产品根据其材料、工艺、使用频率和使用寿命规定了缺陷责任期。退货、换货、维修服务如下:






30天内退货


更换期限长达 1 年


长达 5 年保修


  • 保修流程

提供相关信息(如订单号、产品型号、产品序列号、产品标签等)→描述您遇到的问题→FIBERTOP确认产品完整且仍在保修期内→将产品寄回FIBERTOP维修中心。

笔记:维修或更换产品的保修期以原产品剩余保修期或维修后九十天中较长者为准。

  • 请求维修

当您的FIBERTOP产品需要维修(RMA-Return Material Authorization)时,请联系您的销售顾问,以便为您提供及时的服务。



  • 免费保养项目

保修两年包修: 1.非人为损坏; 2、因设计缺陷或材料问题引起的产品质量问题。



  • 以下情况将不予维修

• 维修中心判断为非FIBERTOP产品;

 出现人为损坏;

 使用造成的端面损坏;

 保修声明中列出的不适用项目。



  • 保修说明

 FIBERTOP保证所有产品从原材料采购到生产过程都经过严格的质量控制。根据客户提出的问题。如果确认缺陷产品是由原材料或生产工艺造成的,飞思卓将免费提供维修或更换服务;

 保修条款不涵盖因安装不当、意外灾害、自然灾害、滥用、误用、供电不足或过多、不正确操作、恶劣环境条件以及任何未经授权的拆卸、修理或改装而造成的产品损坏;

 保修也不适用于二手或未经授权转售的产品;

 FIBERTOP保修仅保证客户在购买有缺陷或损坏的产品时可以享受维修和更换服务; FIBERTOP 没有义务对使用中的其他设备造成的模块损坏和维修需求进行赔偿或承担责任。

 保修范围不包括第三方软件或连接的相关设备等引起的问题。



FIBERTOP始终秉承“专注、创新、进取”的理念,致力于为每一位用户提供可靠的产品和热情的服务。





    净重
0.046公斤 总重量 (带包装) 0.32公斤






1~20 件装
  步骤1 第2步
  步骤3 步骤4

21~80件装
  步骤1 第2步
  步骤3 步骤4

81~160件以上包装
  步骤1 第2步
  步骤3 步骤4





运输方式



FIBERTOP与全球主要物流公司建立了长期合作,为200多个国家和地区提供配送服务。



接收地区 物流类型 时效性
港澳台地区 顺丰1~2天
FedEx IP 1~3 天
联邦快递 IE 4~6 天
DHL 2~5天
海外地区 UPS 1~3天
联邦快递1~3天
DHL 2~5天





笔记: 1.时效为预计配送时间,部分偏远地区配送可能会延迟,具体配送时间为准;



2、如需指定物流公司,请联系客服人员或您的销售代表。











FIBERTOP拥有10多年的研发技术经验和100多个成功案例。凭借丰富的经验和研发实力,我们拥有从核心系统设计到SFP光模块的兼容性设计以及最终产品的完成的一整套服务。我们绝对可以通过第一时间提供定制的高性能产品和解决方案来满足客户的需求。
