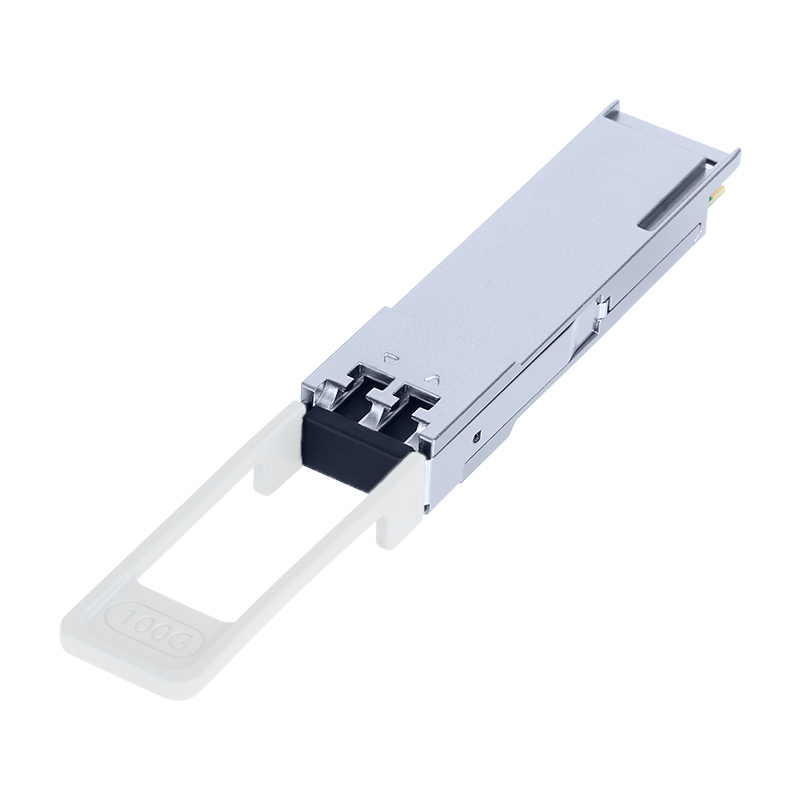

Cisco QSFP-100G-ZR4-S Compatible 100GBASE-ZR4 QSFP28 1310nm 80km Transceiver
Cisco QSFP-100G-ZR4-S Compatible 100GBASE-ZR4 QSFP28 1310nm 80km Transceiver

Cisco QSFP-100G-ZR4-S Compatible 100GBASE-ZR4 QSFP28 1310nm 80km Transceiver



SKU:  QFP-LW31HG-80DC-FSZ



Product Highlights



Supports 103.125Gb/s  aggregate bit rates , Lane bit rate 25.78 Gb/s 100GE



Up to 80km transmission with KR4-FEC , LAN WDM EML laser and PIN receiver with SOA



Support Multi-Pin function with IntL/RxLOSL and LPMode/TxDIS



High speed I/O electrical interface (CAUI-4) , I2C interface with integrated DDM



QSFP28 MSA package with duplex LC connector



Single +3.3V power supply




新产品



FIBERTOP 100GBASE-ZR4 QSFP28 Transceiver (SMF, 1310nm, 80km, LC, DDM), Cisco QSFP-100G-ZR4-S Compatible

Buy a reliable 100GBASE-ZR4 QSFP28 optical transceiver replacement compatible with your Cisco QSFP-100G-ZR4-S at Optcore!  FIBERTOP provides a third-party low-cost 100GBASE-ZR4 QSFP28 transceiver replacement that works with the Cisco QSFP-100G-ZR4-S optics. Purchasing FIBERTOP 100G QSFP28 ZR4 transceiver is the perfect way to ensure your switch platform works properly while saving money. This QSFP28 transceiver support 100Gbps speed and 80km link distance over single mode fiber. It is suitable for fiber connectivity in data centers, high-performance computing networks, enterprise core, distribution layers, and service provider applications.



Technical Specification

Compatible OEM Part Number    QSFP-100G-ZR4 FIBERTOP Part Number(s)   QFP-LW31HG-80DC
Transceiver Type 1310nm 80km  Reach 80km
Wavelength LanWDM4 1310nm Form Type     QSFP28
Speed Description 100-Gigabit Media SMF
Connector LC  Extinction Ratio >8.2dB
TX Power +1~+6.5dBm Receiver Sensitivity <-27dbm
 Applications

100GBASE-ZR4 Ethernet

100G Datacom& Telecom connections

Proprietary Protocol Applications

Environment

Operating:0 to70C

Storage: -40°C to 85°C





Quality Assurance





Quality Certification

FIBERTOP has strict control over all products' quality, including our strict qualification audit for material suppliers, comprehensive quality management system and production process control which comply with the certifications and safety standard. Our products accord with industry standard and mainstream quality certification, such as  ISO 9001, CE, RoHS, CE, REACH, FCC, FDA, CB, UL etc.



  • Excellent quality is the foundation of FIBERTOP' s survival and development.
  • Our R&D team are experts with many years' experience in telecom industry.
  • Our manufacturers are first-class manufacturers in the industry.
  • Many of them have the qualification of OEM for first-class system equipment manufacturers.













FIBERTOP provide after-sales service in strict accordance with Chinese Consumer Protection Law & Product Quality Law of the People's Republic of China. The defects liability period is provided for each product based on the materials, workmanship, frequency of use and service life. The return, replacement and repair services are as follows:






Return within 30 days


Replacement up to 1 year


Up to 5 years warranty


  • Warranty process

Provide relevant information (such as order number, product model, product serial number, product label, etc.)→Describe the problems you meet with →FIBERTOP confirms that the product is complete and still in the warranty period→Send the product back to FIBERTOP repair centre.

Note:The warranty period of the repair or replacement product is based on the longer time,either the remaining warranty period of the original product or ninety days after repair.

  • Request a repair

When your FIBERTOP products need repairing(RMA-Return Material Authorization ) , please contact your sales consultant to provide timely service to you.



  • Free maintenance items

Guarantee repairing in two years : 1.Not man made damage; 2. Product quality issues caused by design defects or material problems.



  • The following conditions will not be repaired

• Maintenance center judge as a non FIBERTOP products;

The appearance of man-made damage;

End face damage caused by use;

Inapplicable items listed in the warranty statement.



  • Warranty description

FIBERTOP guarantees that all the products are subject to strict quality control from raw materials procurement to production process. According to the problems raised by customers. if it is confirmed that the defective product are caused by raw materials or production process, FIBERTOP will provide repair or replacement services for free ;

The warranty terms do not cover any damage to the product caused by improper installation, accidental disasters, natural disasters, abuse, misuse, inadequate or excessive power supply, incorrect operation, poor environmental conditions, and any unauthorized disassembly, repair or modification ;

The warranty also does not apply to second-hand or unauthorized resale of products;

The FIBERTOP warranty only guarantees that customers can enjoy repair and replacement services when they purchase defective or damaged products ; FIBERTOP is not obliged to compensate or assume responsibility for module damage and repair needs caused by other equipment in use.

The warranty does not cover problems caused by third-party software or connected related equipment,etc.



FIBERTOP always adheres to the concept of "focus, innovation and progress", and is committed to providing every user with reliable products and enthusiastic services.





    Net weight
0.02kg Gross Weight(with package) 0.32kg





 Packing

Package of 1~50 pieces
  Step 1 Step 2
  Step 3 Step 4

Package of 51~200 pieces
  Step 1 Step 2
  Step 3 Step 4

Package of 201~400 pieces or more
  Step 1 Step 2
  Step 3 Step 4





DELIVERY METHOD



FIBERTOP has established long-term cooperation with major global logistics companies to provide distribution services to more than 200 countries and regions.



Receiving Region Logistics Type Timeliness
Hong Kong, Macao and Taiwan SF 1~2 days
FedEx IP 1~3 days
FedEx IE 4~6 days
DHL 2~5 days
Overseas Regions UPS 1~3 days
FedEx 1~3 days
DHL 2~5 days





Note: 1. Timeliness is the estimated delivery time, some remote areas delivery may be delayed, the specific delivery time shall prevail .



  2. If you need to specify a logistics company, please contact customer service staff or your sales representative.











FIBERTOP has 10+ years of R&D technology experience and more than 100 successful cases. With rich experience and R&D strength, we have a complete set of services from the core system design to the  compatibility design of SFP transceivers and the completion of the final product. We can definitely satisfy our customers' needs through providing customized high-performance products and solutions at the first time.



Product customization





Fs_label.svg

Label

Fs_colour.svg

Colour

Fs_model.svg

Model

Fs_length.svg

Length

Fs_function.svg

Function













Scheme Customization







Business





Rate





Distance





FIBERTOP focuses on customer-oriented solutions and provides technical support.



We can optimize the design based on your original solutions, and also provide you with a complete network solution ,related products and technical support.









40G QSFP+ MMF 850nm 300m MPO Transceiver Module

 QFP-LW31HG-80DC  100G  QSFP28 1310nm  80km LC Transceiver Module
 QFP-LW31HG-40DC  100G  QSFP28 1310nm  40km LC Transceiver Module
